What a Solar Panel Really Does in an Outdoor Light
Ever looked at a solar garden light and wondered how a small black square could power an LED all night? The answer lies in four links: the solar panel captures light, a charge controller regulates the current, a battery stores the energy, and an LED consumes that stored power on demand. Understanding this circuit means understanding why some lights still work in January while others die after the first cloudy sky.
This guide explains each step, without unnecessary jargon, providing what you really need to know to choose or evaluate an effective solar panel lighting system.
The Complete Circuit: From Sun to LED
The Solar Panel: The Source of Everything
The panel converts sunlight into direct electrical current. The larger its surface area, the more energy it captures, even when the sky is overcast. This is the starting point of the entire chain. An undersized panel means the rest of the system suffers: the battery is never fully charged, autonomy is reduced, and the light turns off early in the night.
What we measure on a panel is its active surface area (in square inches/cm²) and its cell efficiency (in percentage). A 15.5 square inch (100 cm²) panel with 22% efficiency produces more than a 23.25 square inch (150 cm²) panel with 14% efficiency. Surface area alone doesn't tell the whole story — cell quality matters just as much.
The Charge Controller: The Silent Regulator
The charge controller is rarely visible, often integrated into the light's housing. Its role: regulate the current entering the battery to prevent overcharging, and manage discharge to protect the cells. Without it, an overcharged lithium battery degrades its performance in a few months. This is a critical part often sacrificed in low-end products.
In entry-level solar lights sold for a few dollars at markets, this component is absent or minimal. The result: the battery ages poorly, and the light loses 50% of its autonomy after one summer.
The Battery: The Nighttime Energy Reservoir
The battery stores what the panel produced during the day to release it at night. Its capacity (in mAh) determines how many hours the LED can operate. An 800 mAh battery in a light with a small panel provides a good night of illumination if the day was sunny. But two consecutive cloudy days, and the reserve is dry.
If you want to delve deeper into this specific point, our article on solar light batteries details how storage capacity changes everything about real autonomy.
The LED: The Most Efficient Link
The good news is that LEDs consume very little energy to produce a lot of light. This is why solar lighting is viable: an LED can stay on for hours with the energy stored in a small battery. But if the panel hasn't recharged enough, even the most efficient LED can't do anything.
Monocrystalline vs. Polycrystalline: The Real Difference
When comparing two solar lights on a product sheet, you sometimes come across these two terms. Here's what they mean in practice.
| Criterion | Monocrystalline | Polycrystalline |
|---|---|---|
| Cell Efficiency | 18 to 22% | 14 to 17% |
| Performance in Cloudy Weather | Better | Adequate if large surface |
| Manufacturing Cost | Higher | Lower |
| Visual Aspect | Uniform Black | Bluish, Marbled Look |
| Ideal for | Cloudy regions, small surface area | Sunny regions, large surface area |
In regions where the sky can be overcast for several weeks in fall and winter, monocrystalline clearly has the advantage. It captures diffuse light better, the light that filters through clouds. If you live in a northern or frequently cloudy area, this is a truly important criterion.
To learn more about winter performance, we have a dedicated guide on solar lights that work in winter that addresses this very point.
Why Panel Size Changes Everything
The Fundamental Rule No One Tells You
The larger the panel, the more it tolerates poor orientation and cloudy skies. It's that simple. A small, poorly oriented panel will produce almost nothing on a cloudy day. A large panel, even partially oriented east/north, will capture enough diffuse light to maintain a correct charge level.
This rule has concrete implications: if you place a solar light in the shade of a tree or on a wall that only sees direct sun for a few hours a day, the panel's surface area becomes your only safety net. A product with a large panel will compensate. A product with a tiny panel will be useless under these conditions.
How to Practically Evaluate a Panel's Surface Area
On a product sheet, the active surface area of the panel is rarely indicated in square inches/cm². You are often given a peak power in watts. But for integrated solar lights, this figure is often measured under laboratory conditions (maximum sunlight, ideal temperature) that do not correspond to the reality of your yard in November.
A simple way to compare: physically look at the panel's size in product photos. A credit card-sized panel cannot do the same job as a panel twice its size. This is not a marketing issue; it's physics.
Orientation and Its Real Impact
The ideal orientation is facing south, tilted between 30 and 45 degrees. In practice, no one chooses the location of their light solely based on the panel's orientation. We place it where we need it: at the entrance, on an east-facing wall, on a partially shaded pergola.
This is where panel size becomes the key argument again. An oversized panel relative to the LED's consumption creates a safety margin. It can be suboptimally oriented and still charge the battery enough to last through the night.
Concrete Applications: Where It Really Makes a Difference
Pathway and Walkway Lighting
For garden path lighting, lights are often placed in semi-shaded areas, between hedges or trees. The panel's surface area directly determines the reliability of the lighting from season to season. In summer, even a small panel manages. In winter, the gap widens.
Wall Lighting and Outdoor Security

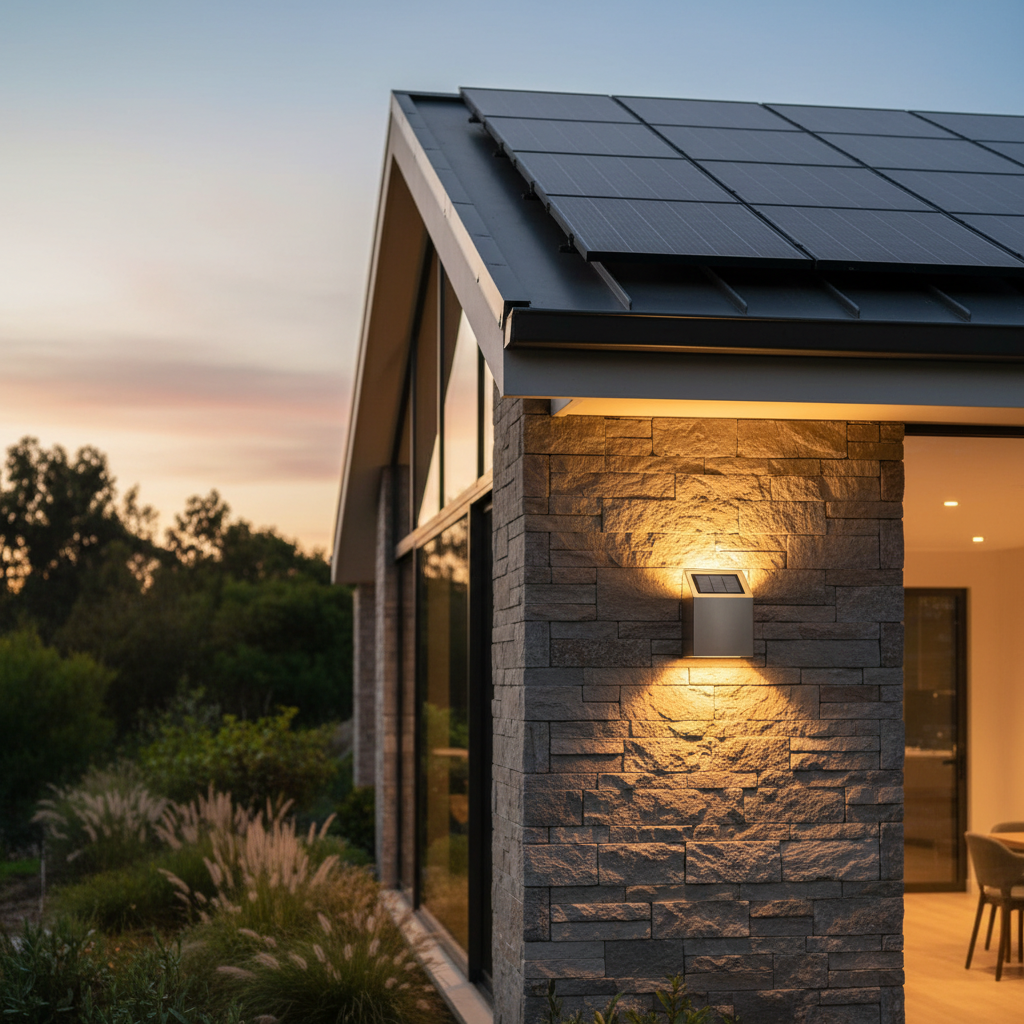

On a facade wall, the orientation is dictated by the architecture. A north or east-facing wall receives little direct sun. For an outdoor solar wall light to remain effective under these conditions, a larger-than-average panel is not a luxury; it's a necessity.
Motion Sensor Lighting
Motion detection mode is a valuable ally: the LED only turns on when someone passes, drastically reducing daily consumption. Result: the battery lasts longer, and the panel has more margin to recharge. This is why motion sensor solar lighting is often more reliable in all seasons than continuous lighting.
What Differentiates Good Solar Lights from Bad Ones
The problem with low-cost solar lights is that they optimize appearance rather than performance. A large housing doesn't mean a large panel. A catalog displaying "800 lumens" says nothing about the actual duration these lumens will be available.
The criteria that truly matter:
- Solar panel surface area: larger = more tolerance for poor conditions
- Cell type: monocrystalline for less sunny regions
- Battery capacity: determines nights of autonomy without recharge
- Charge controller quality: preserves the battery long-term
- Protection rating: IP65 minimum to withstand rain and frost
These parameters are rarely all clearly indicated. When a brand publishes them, it's often because they have nothing to hide. When they are absent, it's rarely a good sign.
If you want to understand how these parameters translate into real power, our article on powerful outdoor solar lights goes into this detail.
Panel Oversizing: A Strategy, Not a Luxury
Why Serious Manufacturers Intentionally Oversize
A manufacturer who sizes their panel to the bare minimum produces a light that works well in summer, in sunny regions, with the panel facing due south. Outside these conditions, it disappoints. A manufacturer who oversizes the panel creates a safety margin that makes the product reliable in real-world conditions: imperfect orientations, cloudy winters, semi-shaded locations.
This is exactly the reasoning behind Lumic's SolarGlow: its panel is significantly larger than what is found in common lights on the market. Not to display an impressive number, but because it allows the light to charge even when oriented partially east/north and under overcast skies. The battery, also larger, stores this extra energy for long nights or sequences of cloudy days. It's the same logic as for a powerful solar floodlight: reliability comes from oversizing, not marketing promises.
How to Check if a Panel is Truly Suitable for Your Use
Ask yourself three simple questions before buying a solar light:
- Where will I place it? If it's a north-facing wall or a semi-shaded area, you need a large panel.
- Which season do I need it most? If it's for winter security, an oversized monocrystalline panel is essential.
- How many nights of autonomy do I want without recharging? The more autonomy you want, the larger the battery must be, and therefore the more the panel must produce to recharge it.
These three answers give you a needs profile. If the product you're looking at doesn't clearly meet it, look for another.
Types of Solar Lighting and Their Compatibility with Different Panels
Not all applications require the same level of panel performance. Here's how to think about suitability:
| Lighting Type | Consumption | Panel Requirement | Priority |
|---|---|---|---|
| Decorative Path Light | Very Low | Low | Aesthetics |
| Ambient Patio Lighting | Moderate | Medium | Autonomy |
| Security Motion Detector | Low (intermittent) | High (reliability) | Winter Reliability |
| Facade Floodlight | High | Very High | Large Panel Surface |
If you're exploring different categories, our guide on types of outdoor solar lighting helps you identify what matches your specific use.
What to Remember Before Choosing
The solar panel lighting isn't just a decorative accessory glued to the top of a light. It's the engine of the entire system. Its surface area, the quality of its cells, and its suitability with the battery and LED consumption determine whether your light will be reliable twelve months a year or just pleasant in July.
Key takeaways:
- The complete circuit: panel → charge controller → battery → LED
- Monocrystalline: better efficiency, essential for less sunny regions and suboptimal locations
- Polycrystalline: acceptable when the surface area is large and sunlight is consistent
- Panel surface area compensates for poor orientation and cloudy skies
- An oversized panel is not wasteful: it's a safety margin for real weather conditions
- An absent or low-quality charge controller destroys the battery in a few months
By understanding these mechanisms, you can read a product sheet differently. And avoid paying for a light that will only work six months out of twelve.
